LED Ceiling Spot RGBW PWM Anthracite

Fully dimmable LED ceiling lighting

Whatever the room – achieve the perfect light with any variety of Loxone LED Spots.
The right amount of light, adjustable to whatever the occasion.

By using LED Spots along with the RGBW Dimmer Air / Tree, you achieve a soft, gentle dimming curve compared to conventional dimming types.

Conventional dimming behavior (DMX)
8 bit 256 steps

Loxone RGBW Dimmer Tree/Air
16 bit 65536 steps*

*Requirement: Use of at least Loxone Config Version 9 + Loxone RGBW Dimmer Tree / Air or Loxone LED Spot WW or RGBW Tree + Use of Smart Actuators in the lighting controller V2.

Maximum energy efficiency

With the LED Spots RGBW, you can create a warm and welcoming atmosphere in your home. Thanks to separate channels for red, green, blue, and white, you can create any color combination of light. Not only that, but these expertly crafted spotlights are highly energy efficient, making them ideal for your home, and for the environment.

3,000K

for warm white light

A++

highest energy efficiency

25,000

Operating hours for a long service life

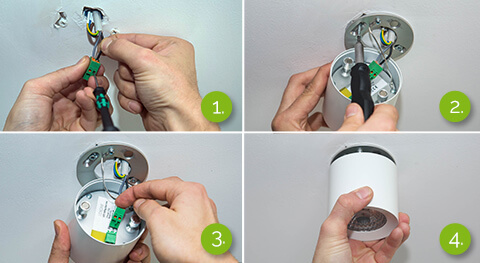

Clips into place with magnetic mount

Install the LED Spot quickly and easily. Thanks to the two mounting magnets, the Spot is held securely without any visible screws.

Timeless design and latest technology

The best thermal management ensures a very long service life while a simple and innovative mounting system makes for hassle-free installation. This intelligent light has features like:

High-quality brand LEDs
Sophisticated aluminum heatsink for optimal passive surface cooling
Long service life of about 25,000 hours. This results in a service life of about 25 years (based on an average daily use of 2.7 hours)
Diffuser for high light transmission and perfect light results

Fixing magnets for easy and quick installation
Long-lasting surface finish
Ready for installation, including quality clips

Blends in with any
interior design

Our RGBW Ceiling Spots are available in white and anthracite. Your Ceiling Spots can match your interior design and, of course, your Loxone Touch switches.

LED Spots fill the room with light of any color

Eulum Data PWM

Eulum Data Tree

How Many LED Spots Do You Need?

It is important to install the correct number of LED Spots suitable to the room size to get the maximum benefit of our smart lighting. In a basic room configuration, we recommend the following number of LED Spots based on square footage:

50 ft²

500 ft²

* for this guideline we are working to a ceiling height of 8.5ft and a light level intensity for basic lighting at table height (200 lux for warm white light)

The right technology for every home

Tree technology with minimal wiring

Enjoy maximum flexibility with minimum wiring effort. There’s no need for an additional dimmer. The Spots are powered by 24V and controlled by Loxone Tree technology, so you can easily create and adjust groups of Spots within Loxone Config. Up to 50 Spots can be wired per branch of the Loxone Tree Extension.

View Documentation

LED Ceiling Spot RGBW

The Loxone LED Spots are powered with 24V. Combine them with our RGBW 24V Dimmer Air or Tree to enjoy seamless dimming as part of your lighting moods. With one 24V Dimmer, you can control up to five LED Ceiling Spots.

View documentation

Works together with
RGBW Dimmer Tree / Air

The RGBW Dimmer Tree / Air has been specially developed for our lighting products.
By using the RGBW dimmer from Loxone, we guarantee a 100% smooth integration into your Loxone Smart Home.

Buy now

Comparing LED Spots

Type	Ceiling Spot RGBW PWM	Ceiling Spot RGBW Tree
Color temperature	RGBW 3000 Kelvin Warm White
Energy class	A++
Light output	741.5 Lumen	741.5 Lumen
Dimming	10…100%
Power	Red: 4.8W Green: 2.0W Blue: 3.2W WW: 9.4W	Red: 4.8W Green: 2.0W Blue: 3.2W WW: 9.4W
Power supply	24VDC (-10%…+5%)
Reverse voltage protection
Flexible	(wired)
Can be grouped	(Hardware)	(Software)
Beam angle	120°
Dimensions	D= 80mm / 3.15″ H= 70mm / 2.76″	D= 80mm / 3.15″ H= 70mm / 2.76″
Shop	RGBW Dimmer Air/Tree	Tree Extension

Technical details

100235, 100278 LED Ceiling Spot RGBW

Product Datasheet Product insert Declaration of conformity Declaration of conformity CZ

IC_SELV-515b4337

Operation is allowed only through a connection with a SELV source.

IC_mounting

Light unit suitable for mounting in or on normally flammable surfaces. The luminaire shall under no circumstances be covered with insulating matting or similar material.

What’s included?

1x LED Ceiling Spot RGBW
1x fixing screws
5x quality clamps
