Nano Relay Air
Item No.: 100426
$114.00
excl. tax
+ $0.00 ACH, wire transfers
+ $2.28 Credit Card (2%)
+ $2.28 Credit Card (2%)
Effective Aug 18, 2025, credit card payments will incur a 2% surcharge (shown in your cart before checkout). Avoid this fee with ACH.

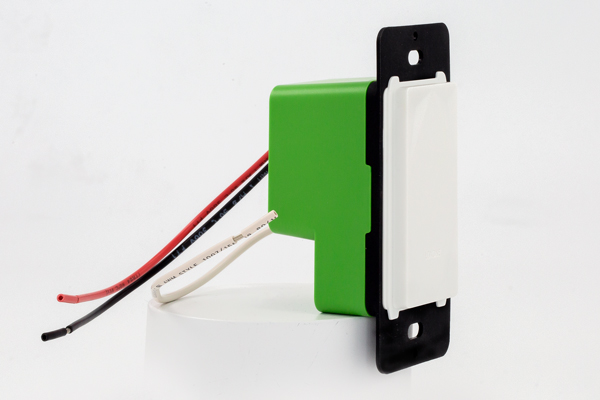

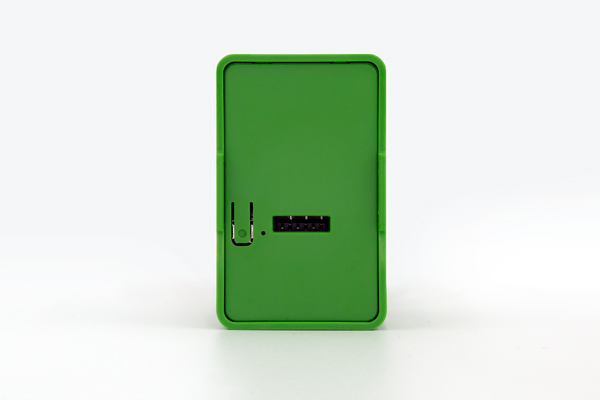

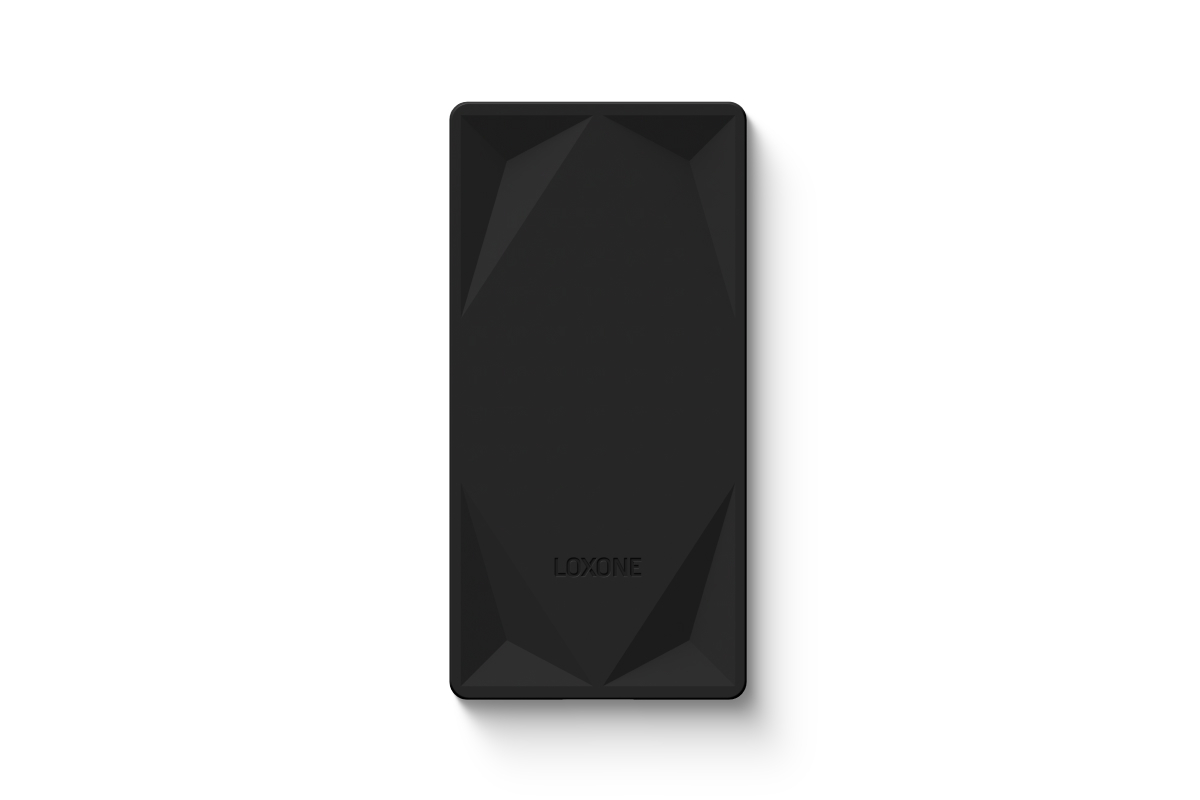

The Loxone Nano Relay Air features a latching relay output, for installation in an electrical switch/outlet box. The Touch for Nano is an optional plug-on keypad. The unit is controlled via the Loxone Air wireless technology.
Features:
- Suitable for lighting, fans and much more
Technical details:
- Power Supply: 110VAC ... 230VAC, 50/60Hz
- Outputs: 1 output (switching supply voltage), bistable 16A AC cosφ=1
- Product dimensions: 71x44x36mm / 2.8x1.73x1.42” (LxWxH)
Specifications
Scope of Delivery
