Smart Socket Air - Type F
Item No.: 100115
€76.68
excl. VAT

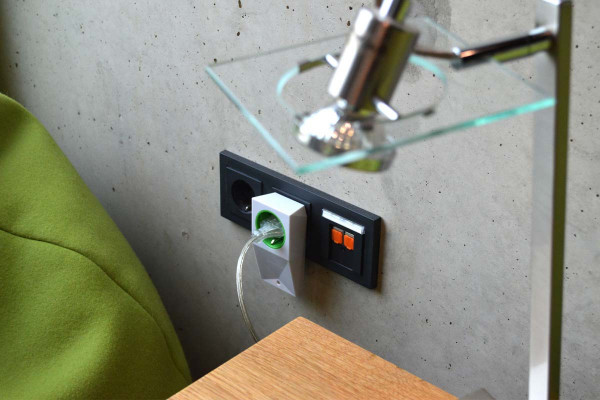

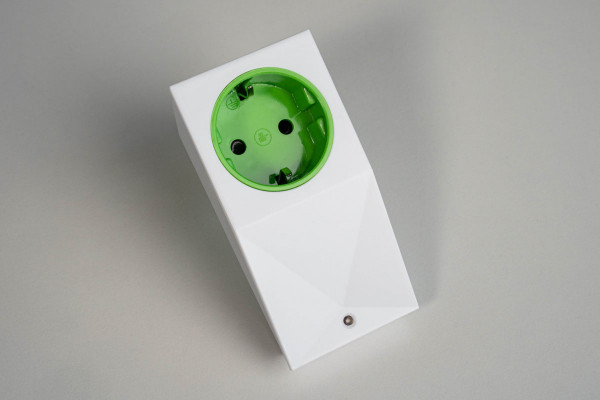

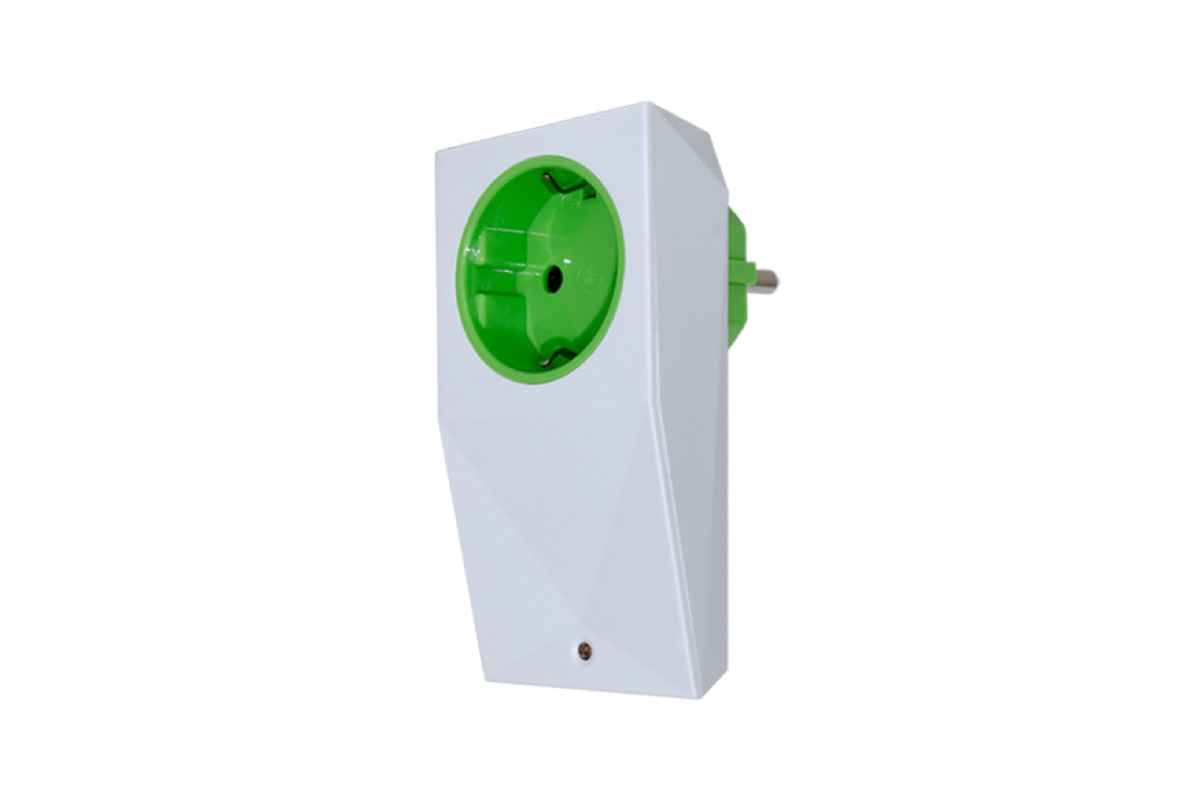

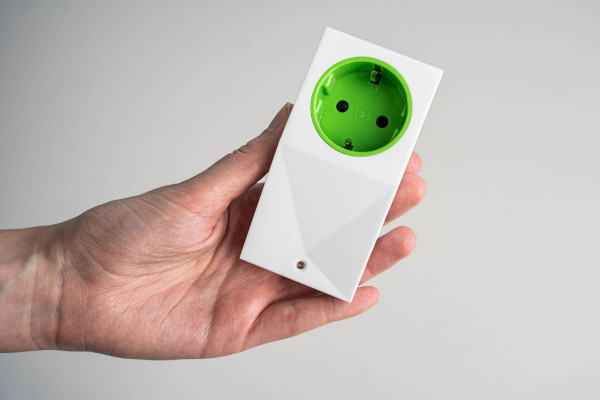

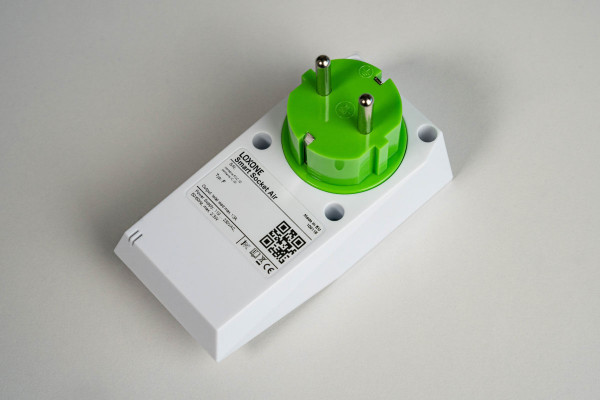

The Loxone Smart Socket Air is a switchable radio socket with measurement of temperature, power and energy.
Features:
- Typical areas of application: Energy recording and measurement of consumers
- Automated switching on and off of consumers based on presence, time, load monitoring
- Remote control of consumers
- Integrated temperature sensor
- Integrated button for individual use
- 3-colored LEDs for individual control
- Easy integration thanks to Loxone Air
Technical details:
Power Supply:
110 ... 230VAC, 50/60Hz
Outputs:
protective contact socket outlet (single-pole switched with internal
relay, bistable)
total load max. 10A (Plug Type J)
total load max. 13A (Plug Types E, F, G)
Temperature detection range:
-40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°F
Power detection range:
0 ... 4kW
Product dimensions:
106x53.8x29.5mm / 4.17x2.12x1.16” (LxWxH) (without plug)
Specifications
Scope of Delivery
Specifications
110 ... 230VAC, 50/60Hz
max. 500mW
2.3W
protective contact socket outlet (single-pole switched with internal
relay, bistable)
total load max. 10A (Plug Type J)
total load max. 13A (Plug Types E, F, G)
-20 ... 35°C / -4 ... 95°F
-40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°F
0 ... 4kW
0 ... ∞ kW/h
can also be used as a push button
868MHz (SRD Band Europe), 4 channels available
max. Power 15.1mW e.r.p.
915MHz (ISM Band Region 2), 10 channels available
max. Power 13.2mW
internal antenna
max. 95% r.H. (non condensing)
IP30
Green: RAL6018
White: RAL9003
Matte
114g
140g
106x53.8x29.5mm / 4.17x2.12x1.16” (LxWxH) (without plug)
116x60x79mm / 4.57x2.36x3.11” (LxWxH)
