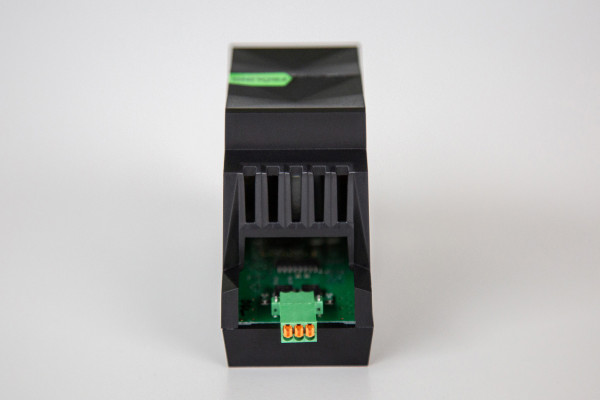

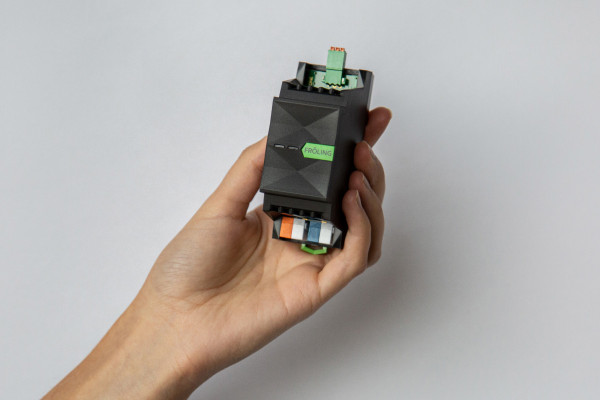

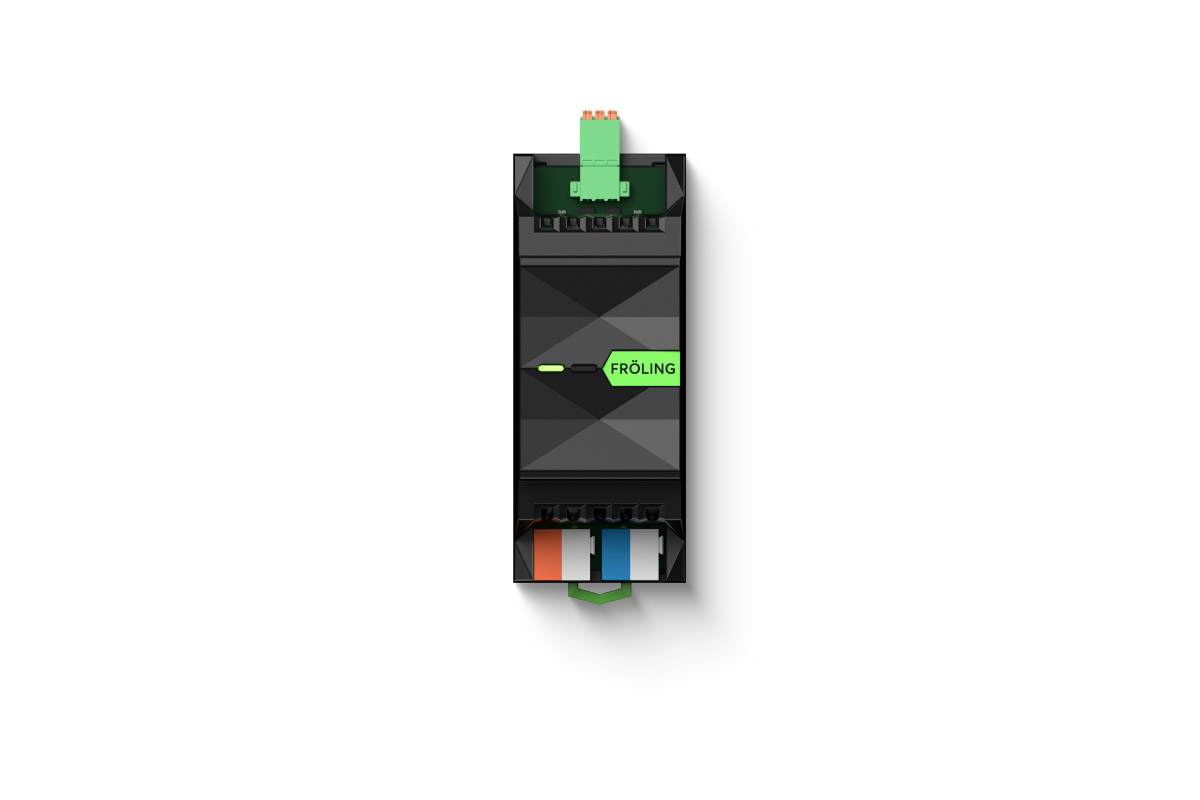

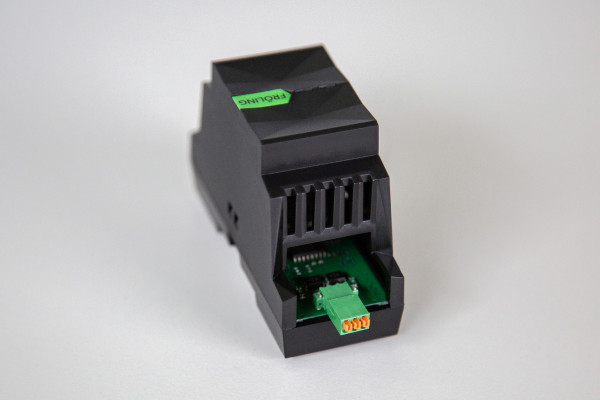

Fröling Extension

Item No.: 100158

€218.31

excl. VAT

The Loxone Fröling Extension enables the integration of heating systems from the manufacturer Fröling.

Features:

  • Integration of up to 18 heating circuits, 8 boilers or 4 buffer tanks
  • Targeted boiler control based on the Loxone individual room control
  • Precise determination of the flow temperature
  • Max. 15m cable length
  • Fröling software: 5.11 or higher is required
  • Fault notification by email or phone call

Technical details:

Power Supply:

9 … 28VDC

Product dimensions:
35.4x88x57mm / 1.4x3.46x2.24” (LxWxH)
In stock · Ready to ship in 24h
Fröling Extension100158
In stock · Ready to ship in 24h

€218.31

Specifications
Scope of Delivery

Specifications

Technical Data
Power Supply

9 … 28VDC

Electrical Data
Power consumption

max. 60mW

Interfaces

Fröling:
integration of up to 18 heating circuits, 8 boilers or 4 buffer cylinder
max. 15m wire length
Fröling Software 5.11 or higher is required

Loxone Link:
connection with Miniserver

Power loss at max. load

60mW

Temperature

-40 ... 70°C / -40 ... 158°F

Ambient Conditions
Humidity

max. 95% r.H. (non condensing)

Ingress protection

IP20

Connections
Wire cross-section

Fröling interface: 0.14 ... 0.5mm² / AWG26 ... 20

Power Supply & Loxone Link: 0.25 … 0.8mm² / AWG23 … 18

Stripping length

Fröling interface: 7mm / 0.28"

Power Supply & Loxone Link: 5mm / 0.2"

Temperature resistance

Fröling interface: -40 ... 70 °C / -40 ... 158°F

Power Supply & Loxone Link: -40 … 105°C / -40 … 221°F

Connection Diagram
Connection Diagram

Drawing or Certification
Product Characteristics
Mounting type

DIN rail according to EN50022, 35mm

Colours

Black: RAL9005

Finish

Matte

Weight & Dimensions
Total weight

85g

Product dimensions

35.4x88x57mm / 1.4x3.46x2.24” (LxWxH)

Product dimensions drawing

Pack size

121x38x62mm / 4.76x1.50x2.44” (LxWxH)
