Multi Extension Air

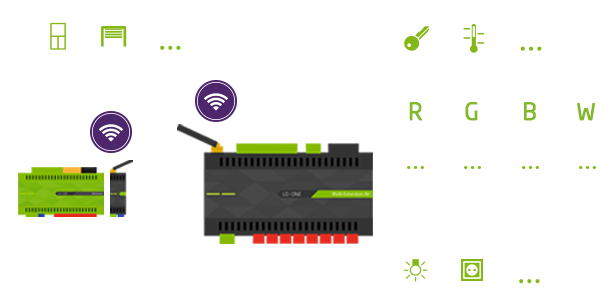

The Loxone Multi Extension Air provides 8 outputs with potential-free bistable relays, 12 digital inputs, a 1-wire interface and 4 PWM outputs.

Features:

• Can be placed anywhere, making it the most versatile extension for retrofitting projects
• 12 digital inputs:
  • 0 - 28 VDC
  • Can be used as a frequency counter (max 200Hz)
• Outputs:
  • 8x digital: (relay), bistable, potential-free
  • 4x PWM: 2.1A per channel (12-28VDC)
• 1-Wire interface:
  • max. 20 sensors, (max. 50mA)

Technical details:
