Tree Cable LSZH (200m)
Item No.: 100394
€346.37
excl. VAT

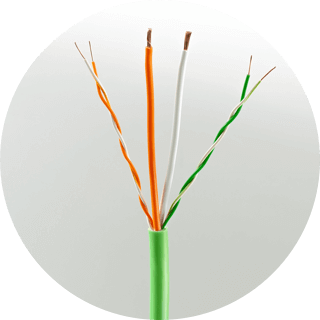

The Loxone Tree cable contains wire pairs for wiring the DC power supply and the data lines of Tree devices. To supply devices with higher power requirements, a wire pair with a 1.5mm² cross-section is also included in the cable.
Features:
- Universally applicable for all Tree products
- Cardboard box with winding to prevent twisting
- Low smoke and halogen-free (LSZH)
- Precise color coding
- Precise meter labeling
Technical details:
Packaging presentation:
200m / 656ft
Product weight:
20.8kg / 45.9lb
Product dimensions:
7.5mm / 0.30” (D)
Loxone Tree: green & green / white:
2x 0.6mm Ø (0.28mm² / AWG23)
- solid copper conductor
- twisted pair
Power supply for devices with low power consumption: orange & orange / white:
2x 0.6mm Ø (0.28mm² / AWG23)
- solid copper conductor
- twisted pair
Power supply for devices with high power consumption: orange & orange / white:
2x 1.5mm² / AWG16
- fine-stranded copper conductor
- construction of conductor: 28x0,245mm Ø
Highest certifications: CPR class B2ca-s1a, d1,a1; UL certificate UL 13 - Power Limited Circuit Cable; UL certificate UL 444/CSA C22.2 No. 214 - Communication Cables
